As usual, it has been too long since my last update. 🤷 While, I did not finish the insulating of the north roof by the first weekend of March as promised in my last update, I did finish it by the following weekend.
Main reason for delay was that I was stalling, as I did not have the anti-microbial solution needed to treat the south roof before starting insulation (long story I will provide in upcoming post). So while I worked part days at site completing north roof insulation, I also concentrated on completing the hydronic heating/cooling panel design and handing off my LoopCAD model to my mechanical designer Daniel www.dsdesignconsultants.net
With the north roof insulation complete and my LoopCAD in the hands of Daniel, I needed to find something new to do and decided to finally hook up the water supply and building sewer to the municipal connections.
The water service was pretty straight forward. I chose to run a polyethylene water service (which was required to be 1-1/4”). The poly has a good track record for durability, is easy to install, and does not typically cause any odors to the potable water. Copper is often chosen for water service, but it just does not have the life span of modern plastics and is SUPER expensive. With the poly, I used Philmac connectors, which are economical and a breeze to install. Only issue I had was one of the nuts snapped while hand tightening, which was replaced by vendor, but still a bit concerning considering municipal pressure is about 130 PSI. Lets hope one does not let go inside the house prior to the pressure regulator at a later time!

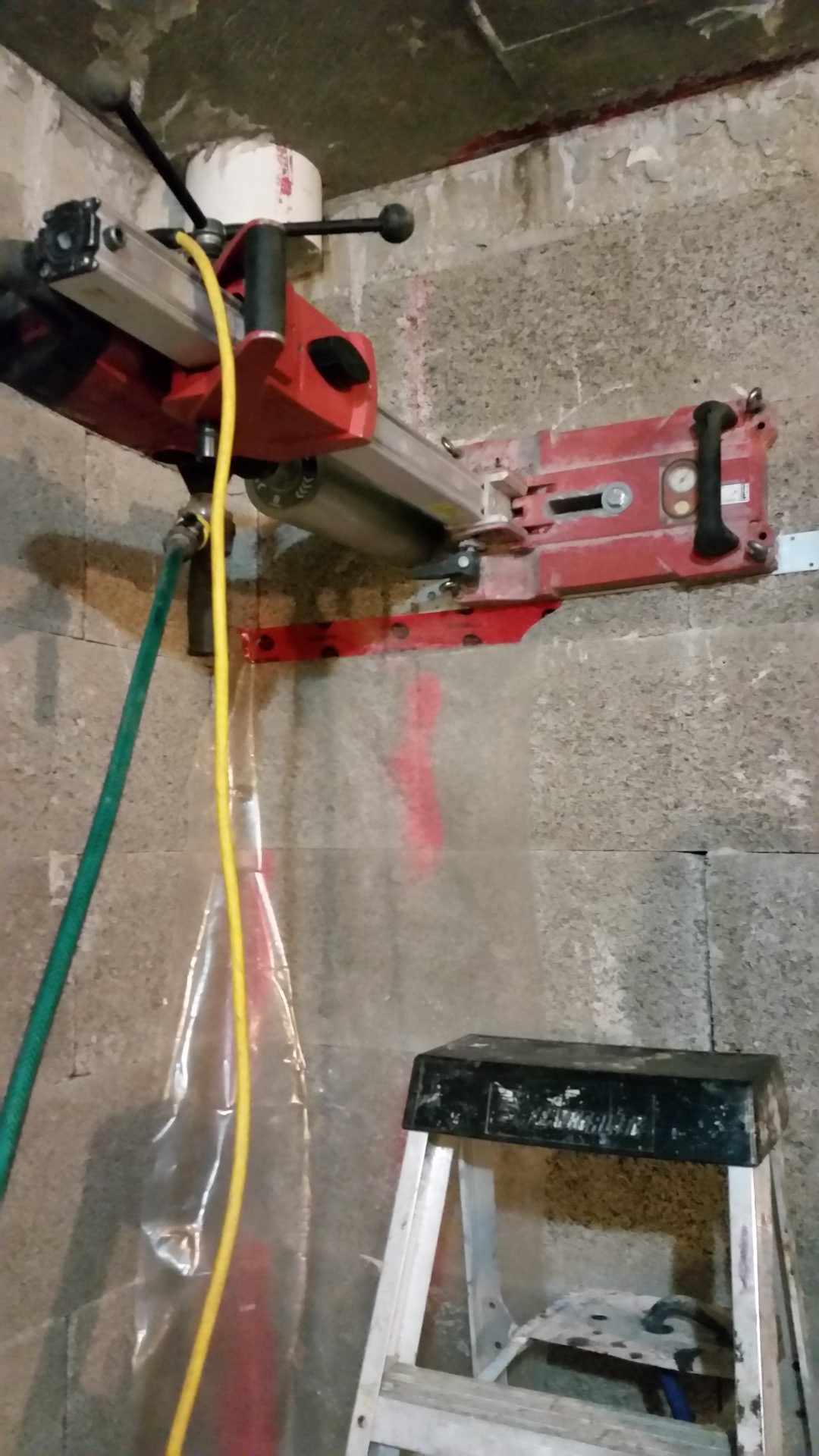

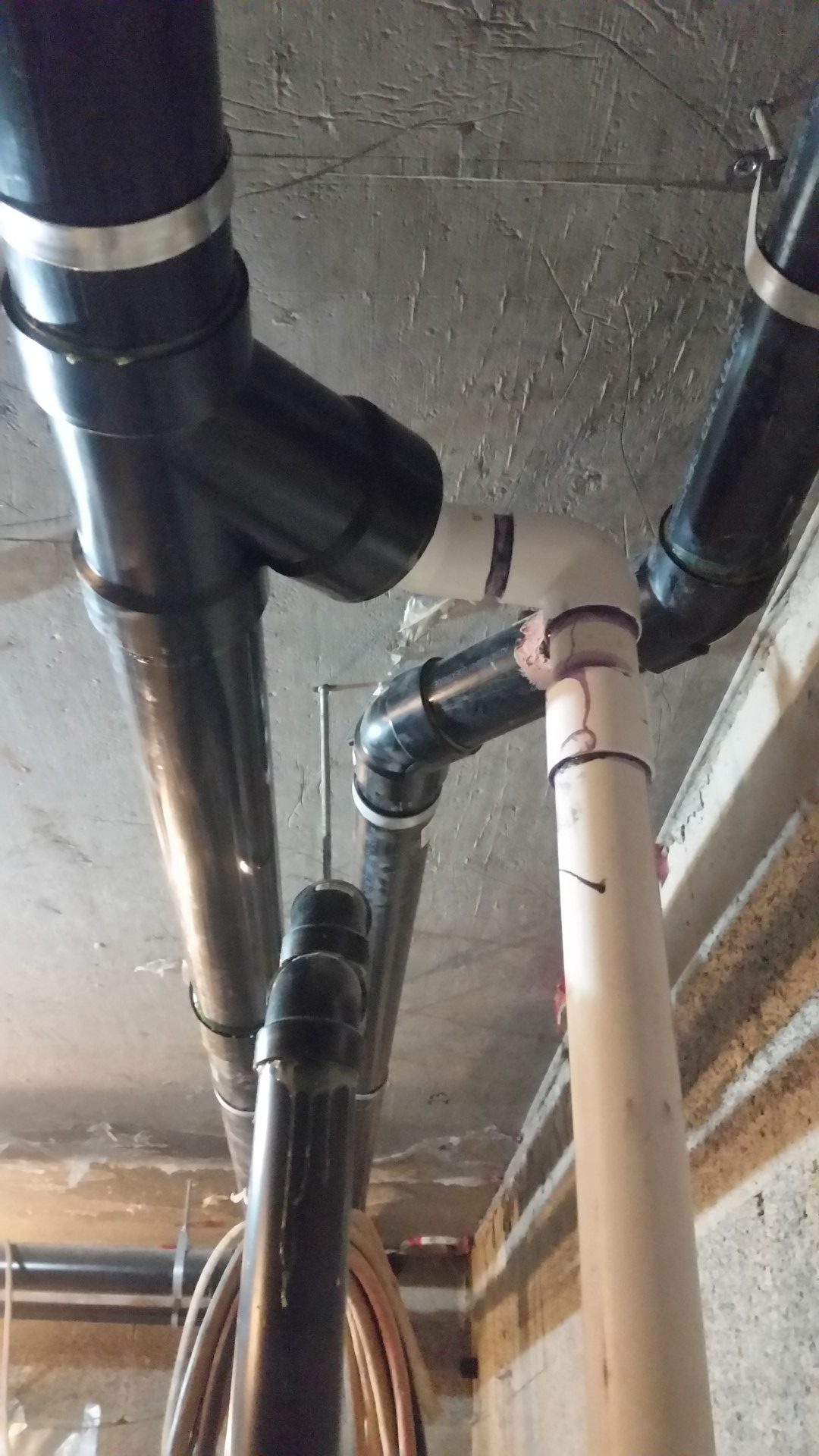

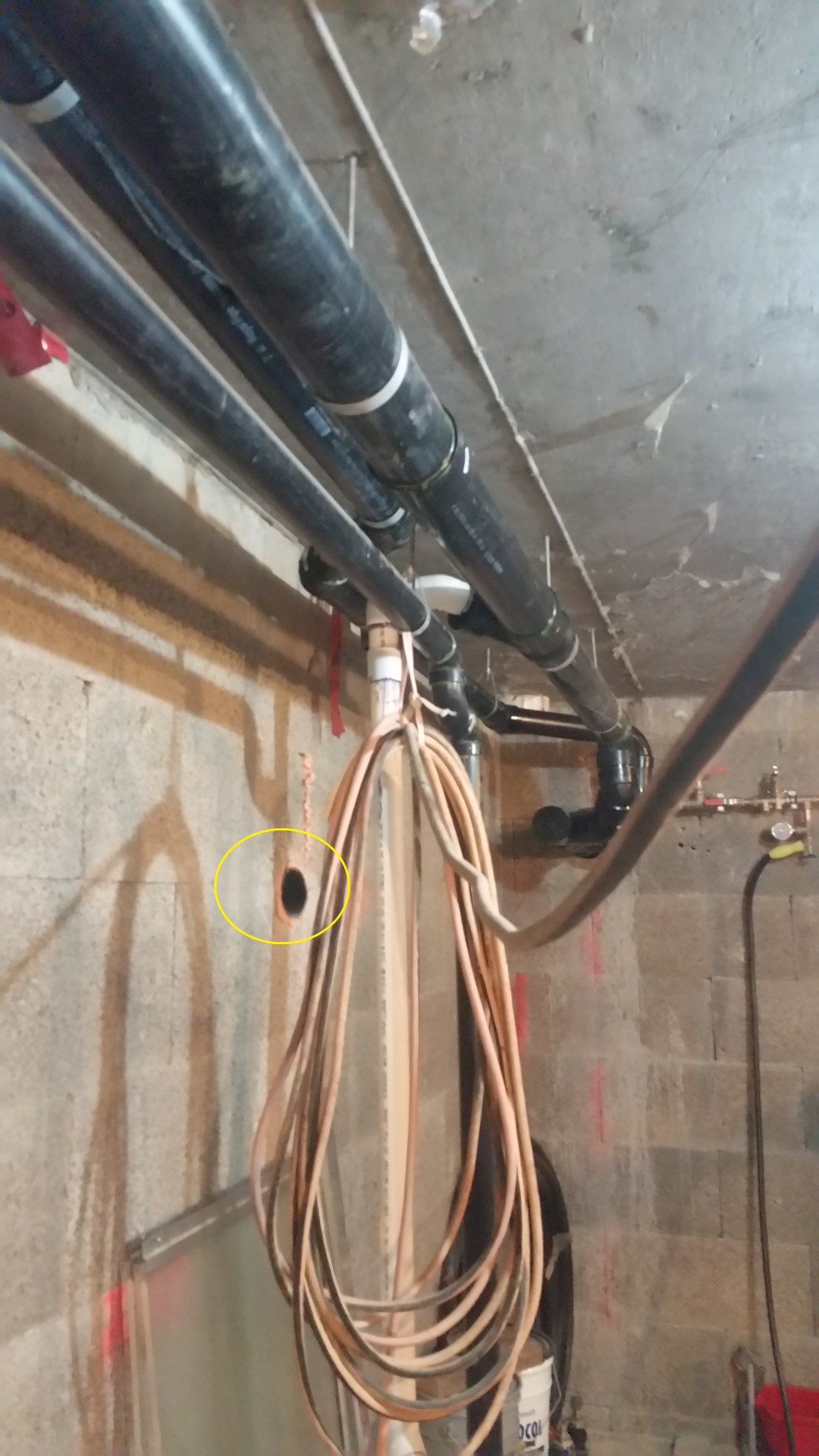

The building sewer was a bit more work. Long time readers will remember that at the very beginning of the project, there was a mistake made by the surveyors when they measured to the bottom of a hole where I had dug out a rose, instead of the true grade of that location (see half way down Altitude Sickness post). This resulted in the whole dwelling being dropped by 16″ from where it was supposed to be. I knew this was going to be an issue down the road and sure enough, in 2017 after finishing the ABS waste drains, I started planning the building sewer. The municipal plans showed the connection should be 9ft deep, but in my mind, I did not remember it being that deep in 2014 when the services to the old house were disconnected. Then I got sidetracked on other projects and did not revisit till summer 2018 when I physically measured the depth at the municipal inspection chamber. It was only 4ft. Now even this would have been fine, but with the 16″ the dwelling was sunk into the ground, this meant that the existing sewer exit from the building on the north side yard would be too low. In fact it was around 8″ too low. And I was unable to raise it at that location because it would then be above the exterior concrete stairs that service the basement walkout. SO, I had to reconfigure the exit from the house and instead project through the front wall. This involved cutting away a bunch of the fittings in the basement dungeon (room under garage) and coring through the foundation in a new location. This time I elected to perform the coring myself with rented equipment instead of getting Urban Sawing and Scanning back.

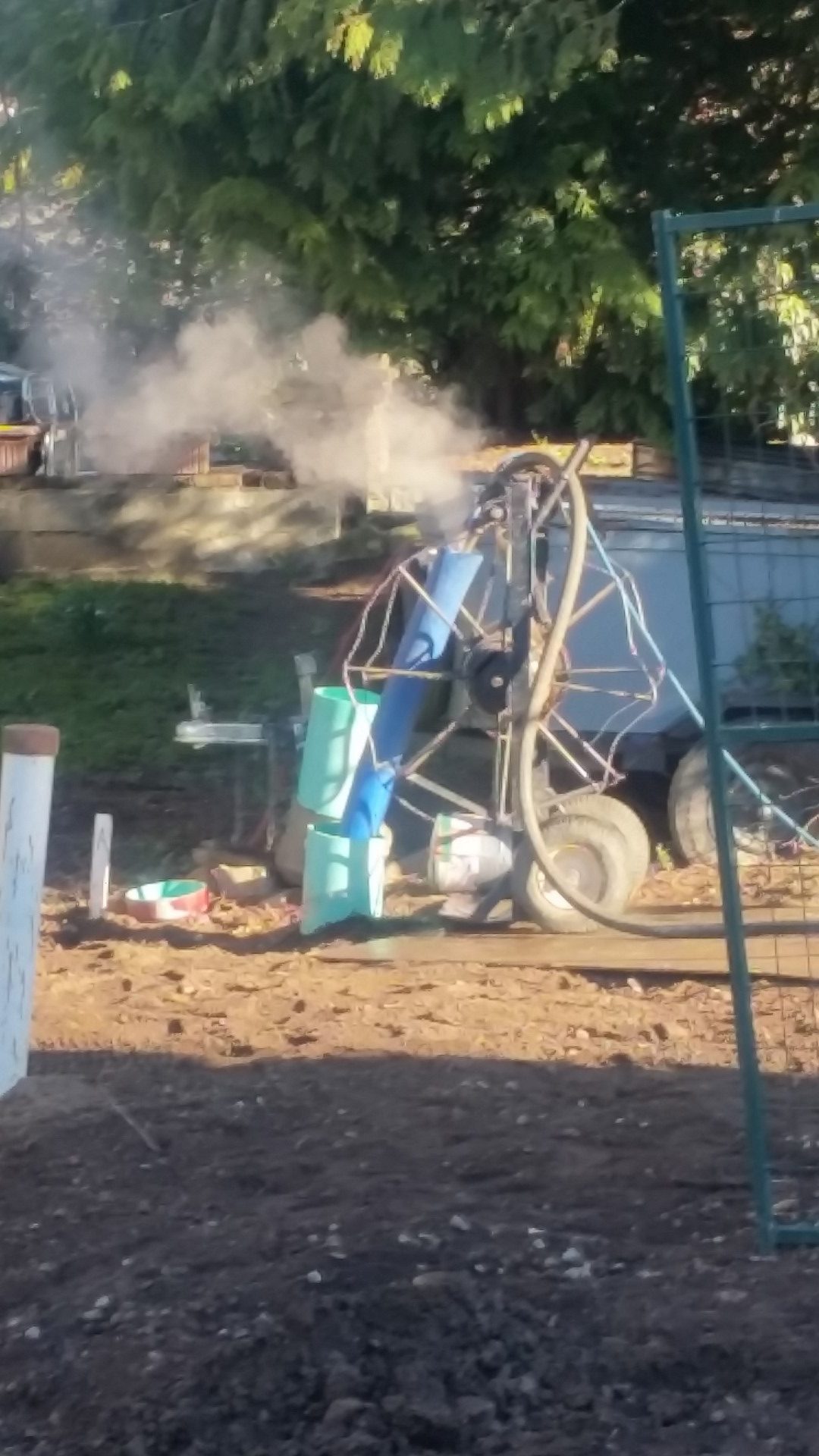

At the very same time I was connecting up the sewer and water line, a Municipal Contractor showed up to line the part of the sewer from the curb inspection chamber to the main sewer in the street (as that portion of the pipe has been in place for several decades). This involved routing in a heat-cured sleeve with an air bladder inside. Once in place, the air bladder was inflated to push the sleeve against the inside wall of the old pipe and then steam was injected in over the course of an hour to cure. Finished product should be good for another 60 years of service.

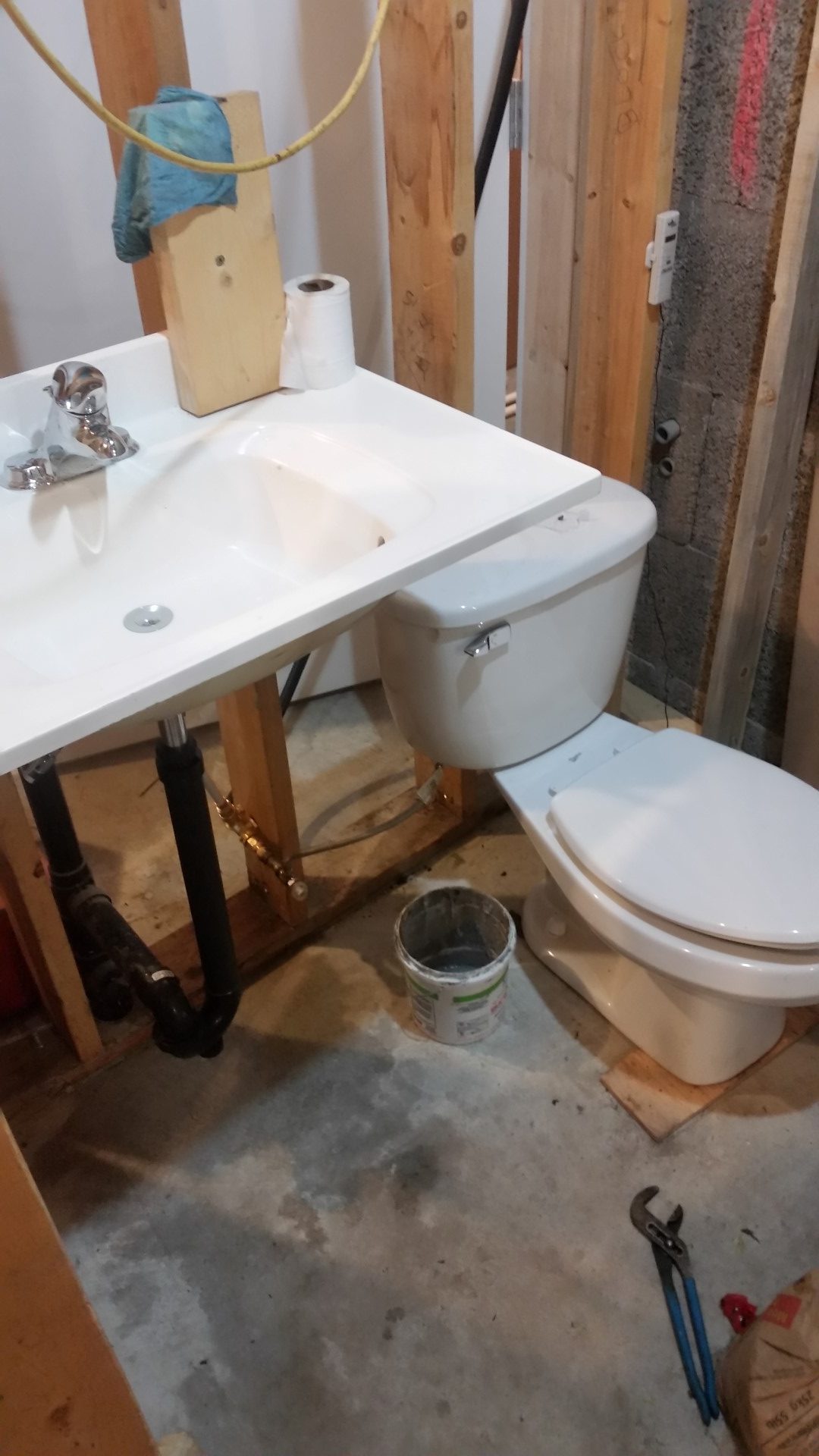

With the water and sewer connected, I was able to temporarily install a toilet and lavatory in the basement and FINALLY get rid of the portable toilet rental in the front yard. And a day later had my first satisfying flush! 🙂
